In today's network construction, optical fiber has been widely used due to its high and fast speed. Among them, single-mode fiber and multimode fiber are the most common. There are still many questions about the difference and application of these two types of fibers. Next, we will analyze the differences between single-mode fiber and multimode fiber in terms of basic structure, transmission distance, and cost.

1. Comparison of Basic Structure of Single-mode Fiber and Multimode Fiber

The basic structure of the optical fiber is usually composed of an outer sheath, a cladding, a core, and a light source. Single-mode fiber and multimode fiber have the following differences:

Outer sheath color difference

In practical applications, the color of the outer sheath of the fiber can be used to quickly distinguish single-mode fiber from the multimode fiber. According to the TIA-598C standard definition, OS1 and OS2 single-mode fibers use yellow outer jackets, OM1 and OM2 multimode fibers use orange outer jackets, and OM3 and OM4 use aqua blue outer jackets (for non-military use).

Litech Pakistan is Top Manufacturer of Best Quality Optical Fiber Cables in Pakistan. And is Sole Distributor in Pakistan for Exfo (Canada) , Sumitomo Electric (Japan) , Wolong Batteries (China). Our professional skills in manufacturing Fiber, Voice, Structured Cabling Solutions.... optical fiber cable Pakistan - cable price in Pakistan - patch cords in Pakistan - patch cords price in Pakistan - ofc cable in Pakistan

Core diameter difference

There is a significant difference in core diameter between multimode fiber and single-mode fiber. The core diameter of multimode fiber is usually 50 or 62.5μm, and the core diameter of single-mode fiber is 9μm. Considering this difference, single-mode fiber can only transmit optical signals with a wavelength of 1310nm or 1550nm over a narrow core diameter, but the advantage of a small core is that the optical signal propagates in a straight line in single mode. Fiber mode. Refraction occurs, dispersion is low, and bandwidth is high; multimode fiber has a wide core, which can transmit multiple modes at a given operating wavelength, but at the same time, because multimode fiber transmits hundreds of modes, each mode Fiber propagation constant is different of the group rate, so the bandwidth of the fiber is narrow, the dispersion is large, and the loss is large.

Note: The standard cladding diameter of most optical fibers is 125um, and the standard outer protective layer diameter is 245um, which does not distinguish between single-mode and multimode.

2 core fiber optic in Pakistan - 4 core fiber optic in Pakistan - 6 core fiber optic in Pakistan - 12 core fiber optic in Pakistan - fiber cable in Pakistan - duct cable in Pakistan - Ariel cable in Pakistan - direct buried cable in Pakistan

Light source difference

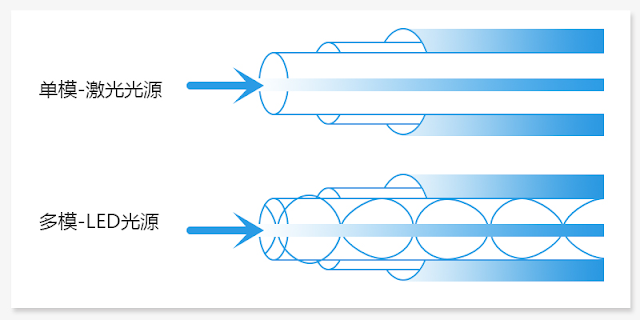

The light source generally has two types’ laser light source and LED light source. Single-mode fiber uses a laser light source and multimode fiber uses an LED light source.
